SPECIFICATIONS

General Specifications
CONTROLS	Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
SAMPLE RATE	44.1 kHz in classic mode, 22 kHz in chords mode
FREQUENCY RESPONSE	20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
SIGNAL TO NOISE RATIO	> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A CONVERTER	24-bit
THD	0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
POWER CONSUMPTION	2.1 Watts (235 mA typical @ 9 VDC)
POWER REQUIREMENTS	9V DC External Adapter (sold separately)
POWER SUPPLY	PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
POWER ADAPTER OUTPUT 9V DC 1.3A	9V DC 1.3A

Audio Output
OUTPUT	1/4" Unbalanced (Tip-Sleeve)
MAX OUTPUT LEVEL	+10 dBu
OUTPUT IMPEDANCE	1 k? (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

Audio Input

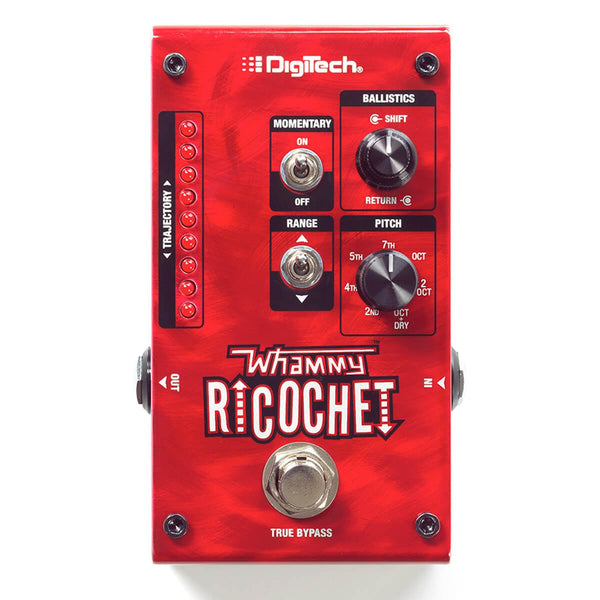

Whammy Ricochet Small Pedal
